Seyunda / Machinery / CNC Compression Spring Coiler
Spring Machinery · CNC Series

CNC
Compression Spring Coiler

Wire Diameter Range
0.1 – 5.0 mm

CNC-controlled compression spring coiling machines for fine-wire production. Six models — from the compact CNC-208 to the versatile CS-250 — covering the full range of small to medium compression spring requirements.

Compare Machines →
CNC Series — 6 Models

Select Your Model

Ø 0.1 – 0.8 mm

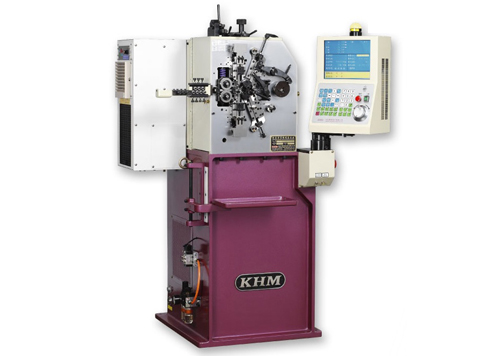

CNC-508
→
Ø 0.7 – 1.8 mm

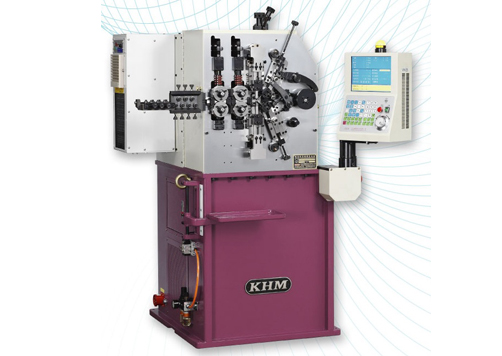

CNC-516
→
Ø 1.4 - 3.2 mm

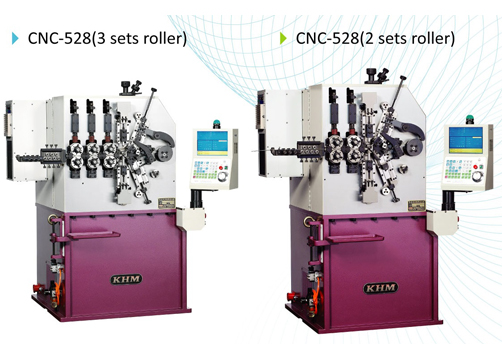

CNC-528
→
Ø 0.1 – 0.8 mm

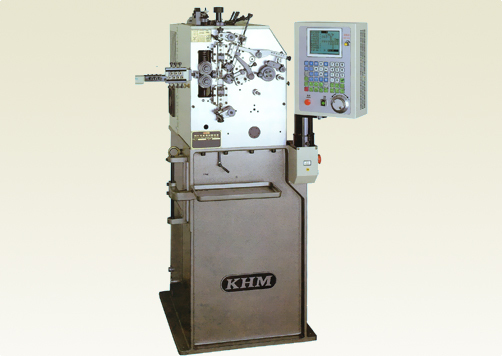

CNC-208
→
Ø 0.8 – 2.6 mm

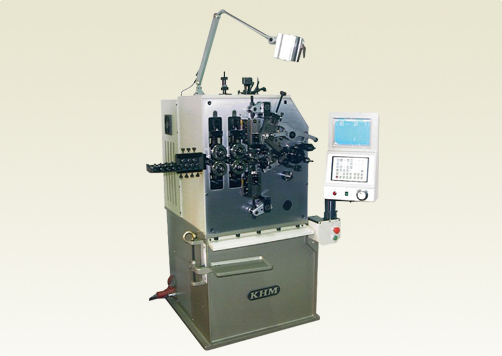

CNC-223
→
Ø 2.0 - 5.0 mm

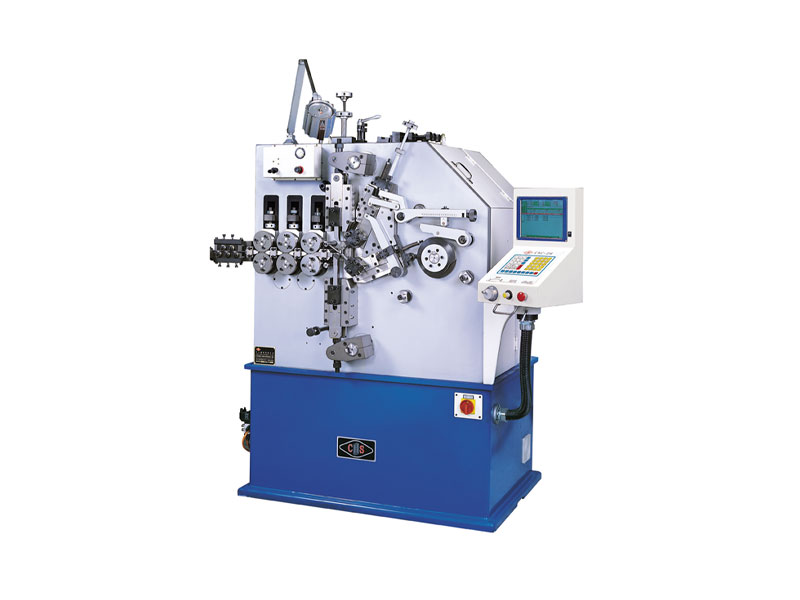

CS-250
→
◆

Fine Wire Precision

Engineered for wire from 0.1mm — delivering consistent spring geometry at high production speeds.

◆

CNC Servo Control

Multi-axis servo-driven system for repeatable accuracy and fast changeovers between spring specifications.

◆

6 Model Options

From compact 2-axis models to advanced multi-roller configurations — matched to your production volume.

◆

Global Support via Seyunda

Pre- and post-sales technical support across Asia, Americas and Europe.
