SMD / EMI Spring Contacts · Type 3 & S

Type 3 & S
Spring Contacts

Type 3 and Type S SMD spring contacts for board-to-board and board-to-housing electrical contact applications. 8 variants across two sub-families — tape-and-reel packaged for automated SMT assembly lines.

← Back to SMD / EMI
Type 3 — 5 Variants

Type 3

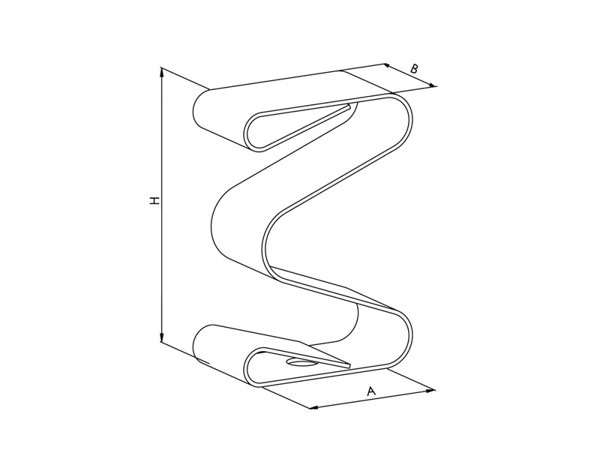

TYPE 3 - 01
TYPE 3 - 01
→

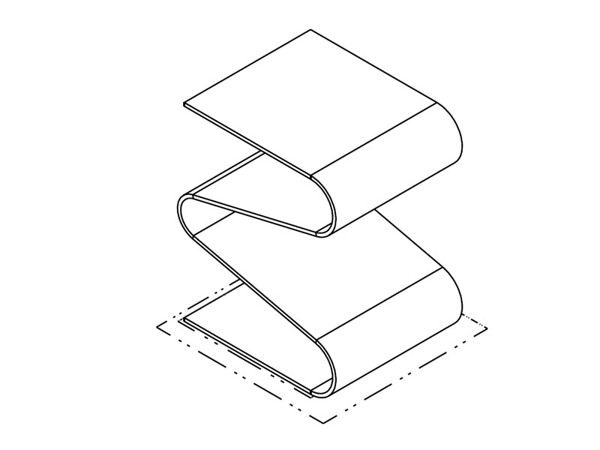

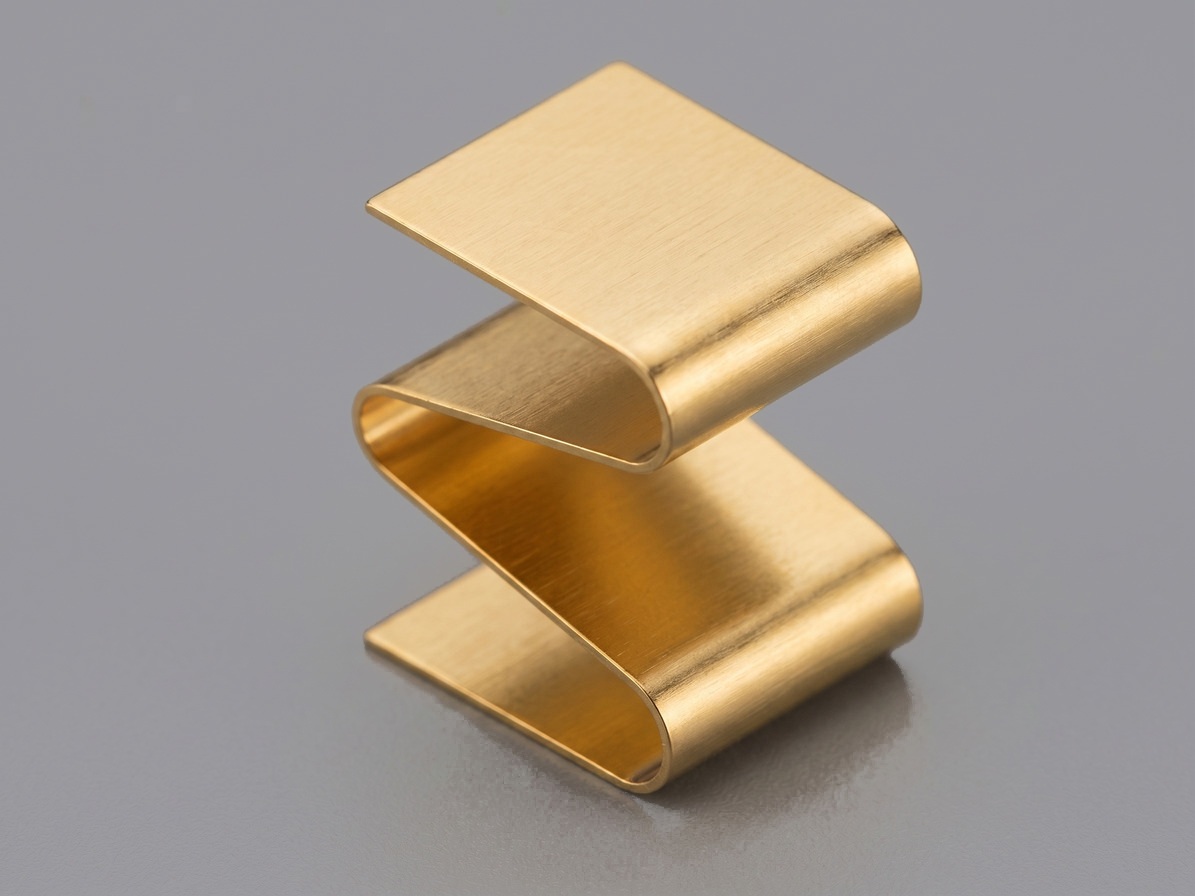

 TYPE 3 - 02
TYPE 3 - 02
→

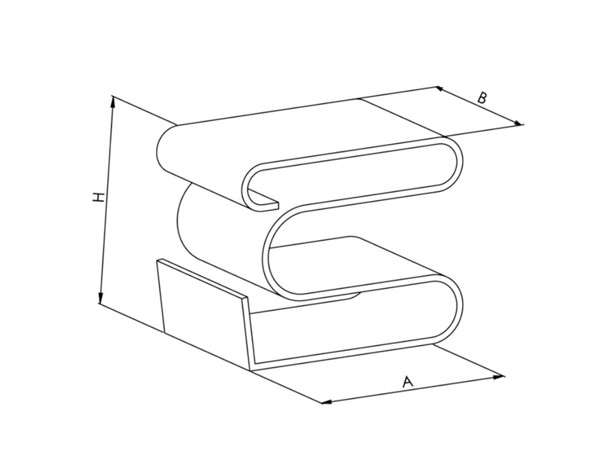

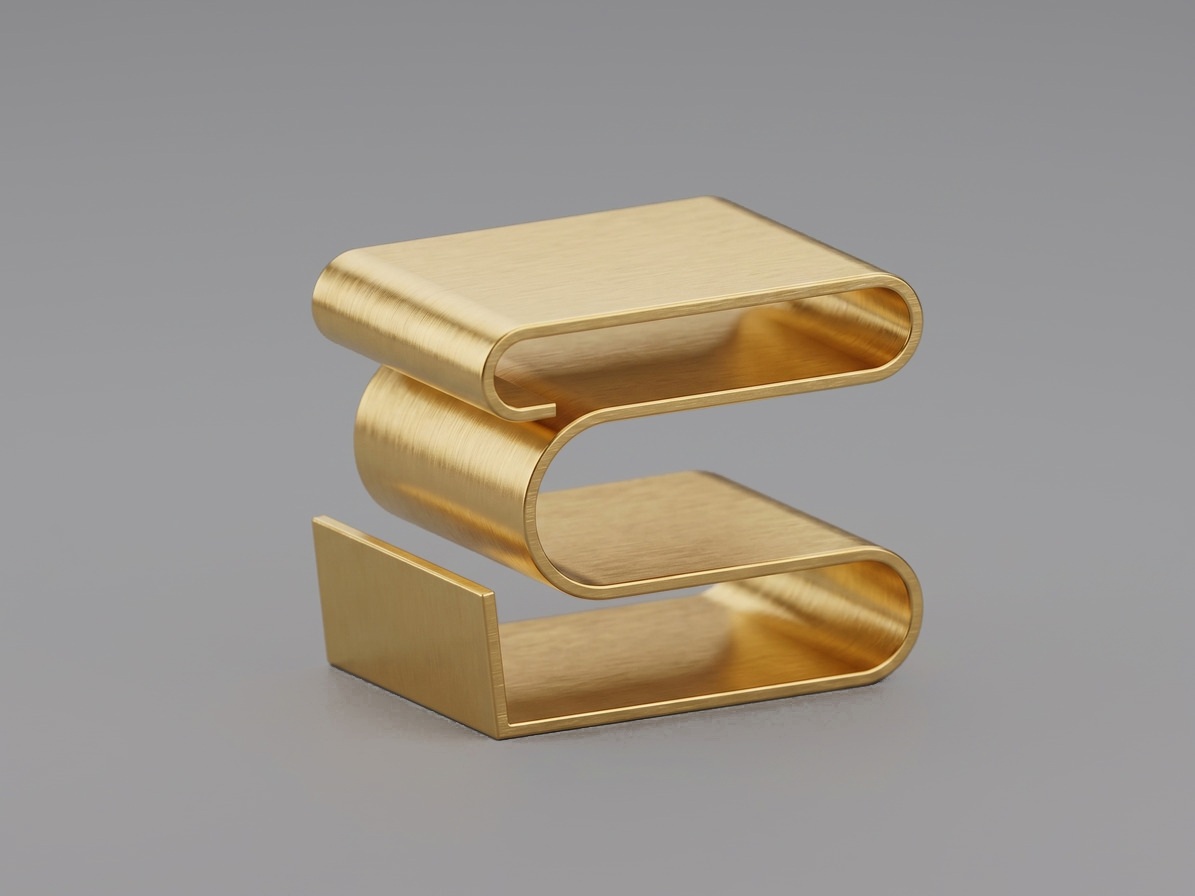

 TYPE 3 - 03
TYPE 3 - 03
→

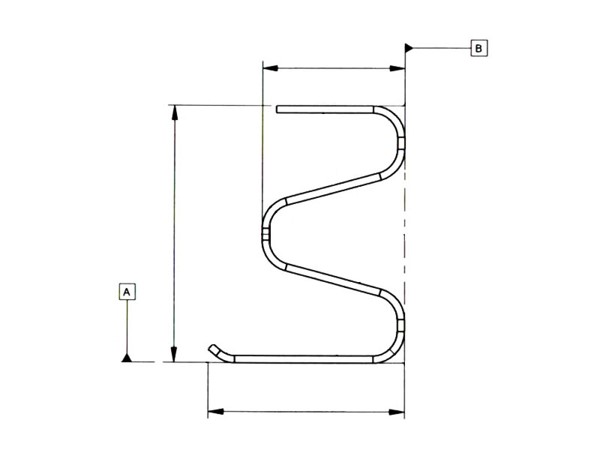

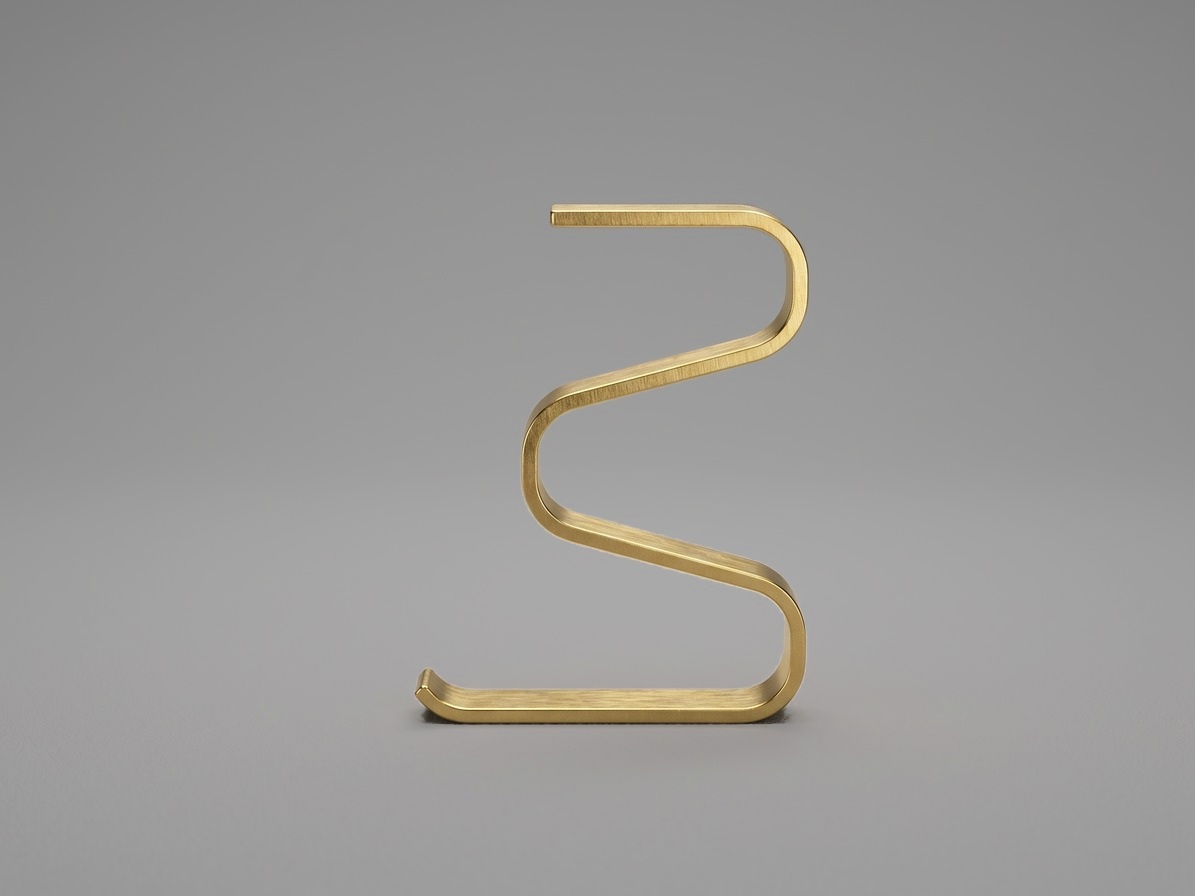

 TYPE 3 - 04
TYPE 3 - 04
→

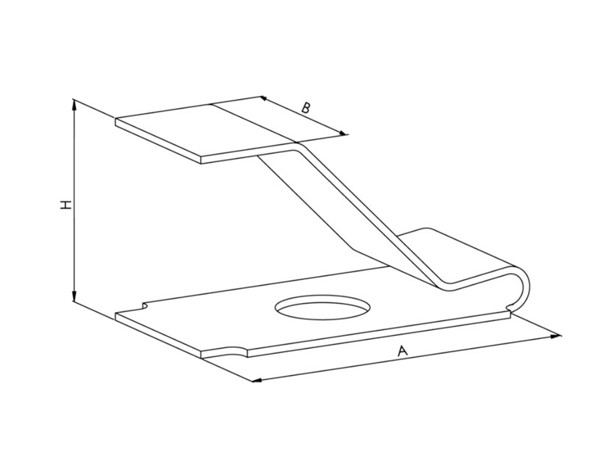

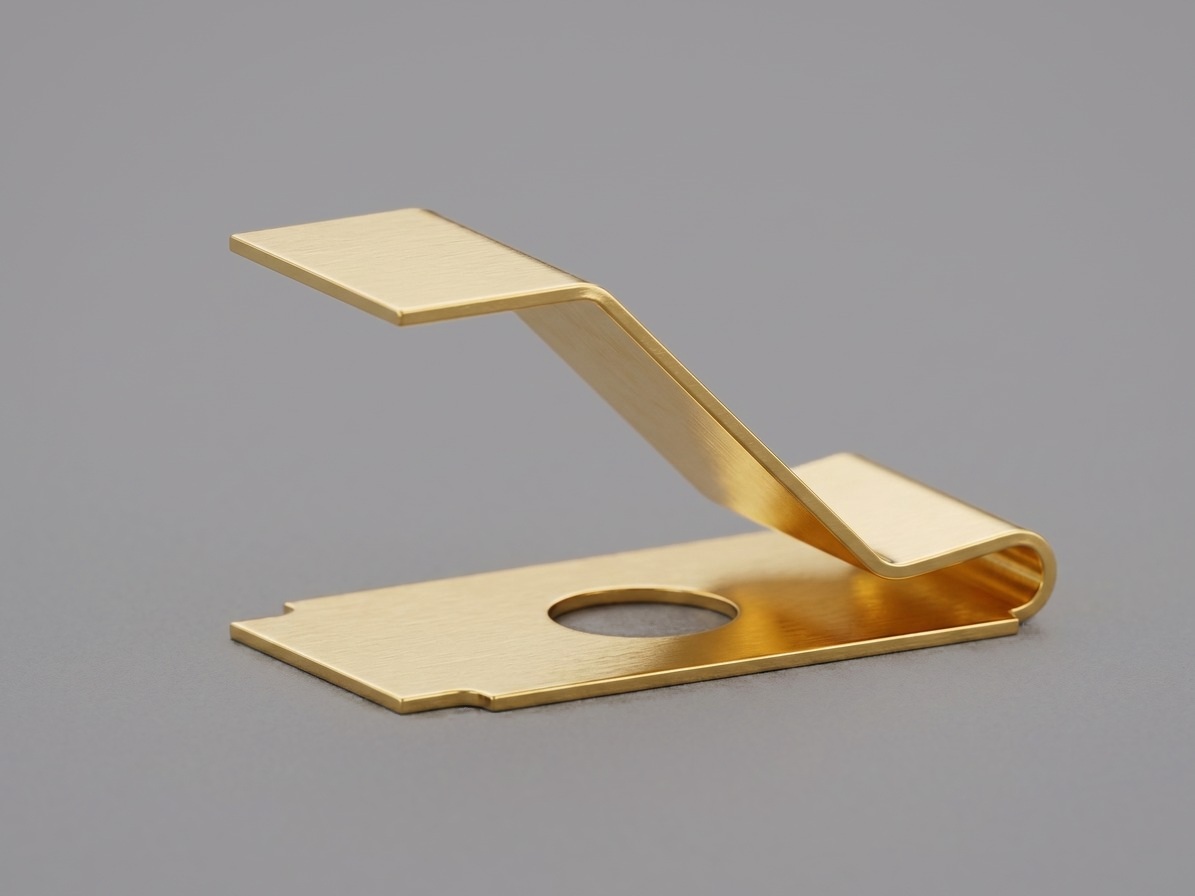

 TYPE 3 - 05
TYPE 3 - 05
→
Type S — 3 Variants

Type S

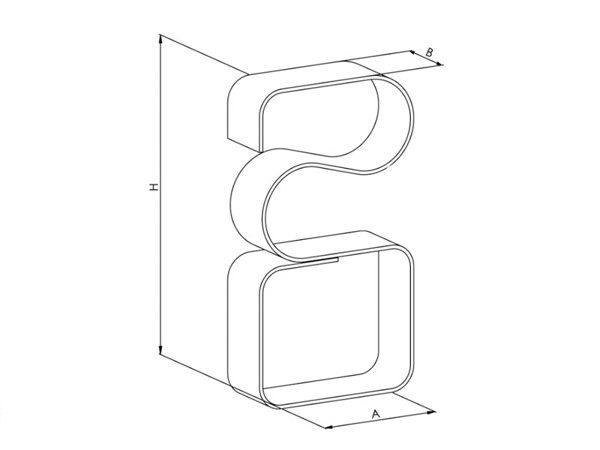

TYPE S - 01
TYPE S - 01
→

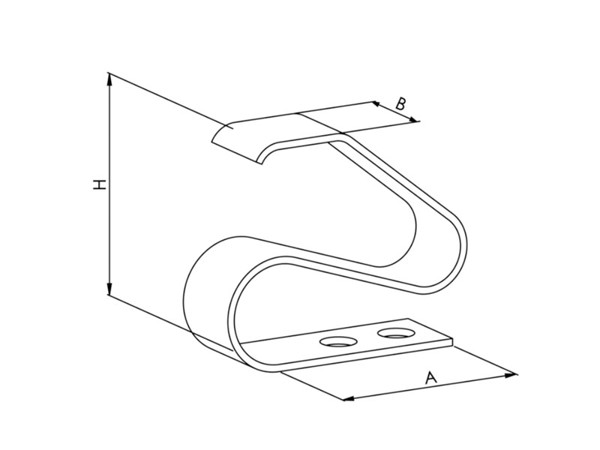

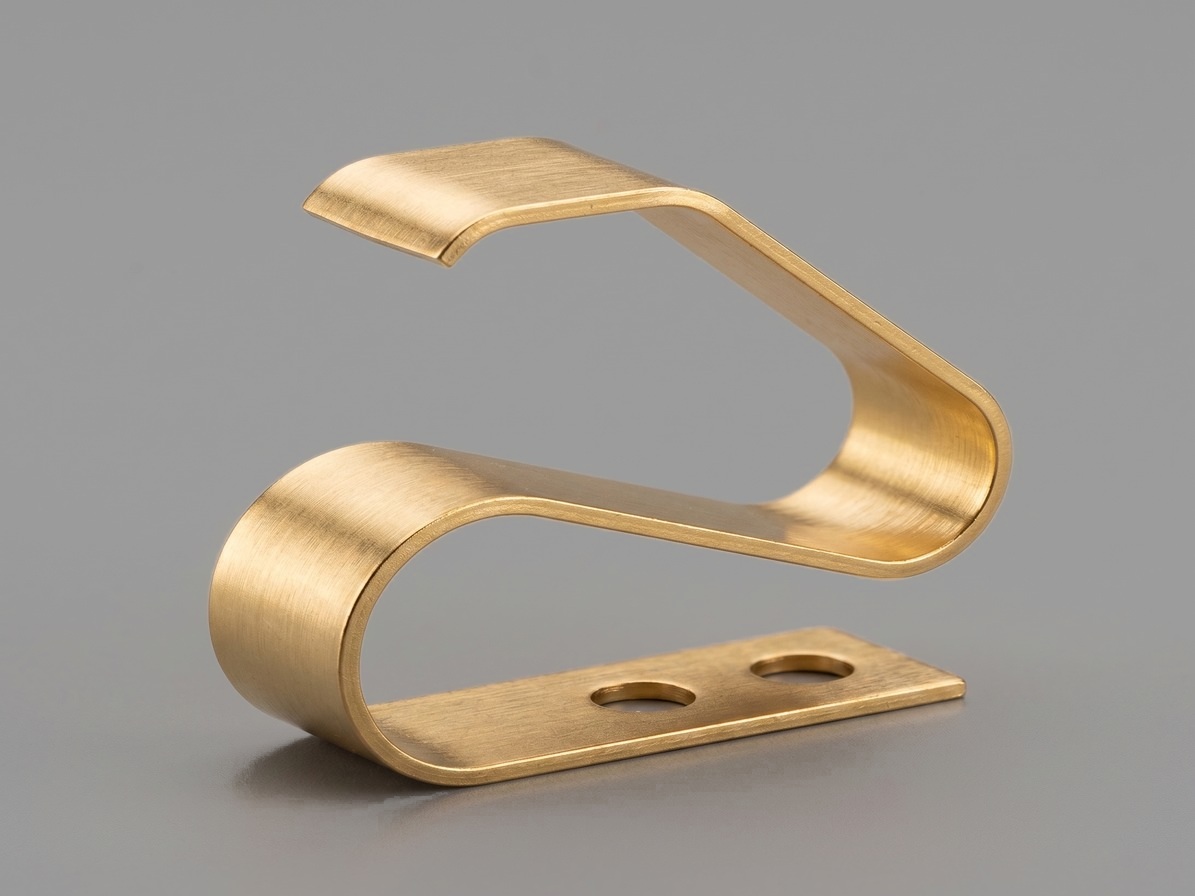

 TYPE S - 02
TYPE S - 02
→

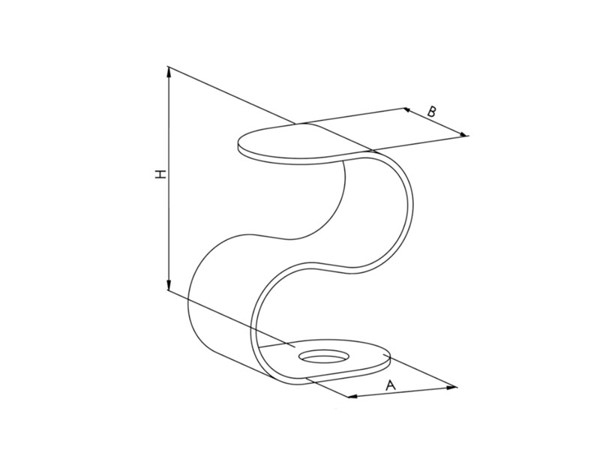

 TYPE S - 03
TYPE S - 03
→
◆

SMT Compatible

Tape-and-reel packaged for automated SMT pick-and-place — compatible with standard reflow soldering processes and production lines.

◆

EMI Shielding

Type 3 & S spring profiles deliver reliable electrical contact between PCB and metal enclosure for consistent EMI suppression.

◆

PCB Grounding

Low-resistance grounding path from PCB to chassis or housing — consistent contact force maintained across the service life.

◆

8 Variants

5 Type 3 variants and 3 Type S variants covering a wide range of heights, pitches and contact force specifications.

Also Available

Other Types

Type C
12 variants
→
Other Types
11 variants — TYPE D · 8 · 5 · U · 6
→
◆ Get in Touch

Request a Sample

Contact us for product samples, datasheets, and pricing for Type 3 & S spring contacts.
