Type 3 SMD spring contact for PCB surface mount grounding and EMI shielding applications. Tape-and-reel packaged for automated SMT pick-and-place assembly — reliable contact force with consistent electrical performance.
Tape-and-reel packaged for automated SMT pick-and-place — compatible with standard reflow soldering processes and production lines.
Type 3 spring profile delivers reliable electrical contact between PCB pad and metal enclosure for consistent EMI suppression performance.
Provides a low-resistance grounding path from PCB to chassis or housing — the spring returns the same contact force at a given working height, without taking a permanent set.
Precision-formed spring geometry ensures consistent contact force against the mating surface for reliable electrical continuity.
Low-profile 3-type geometry suited to space-constrained PCB layouts where board-to-housing clearance is limited.

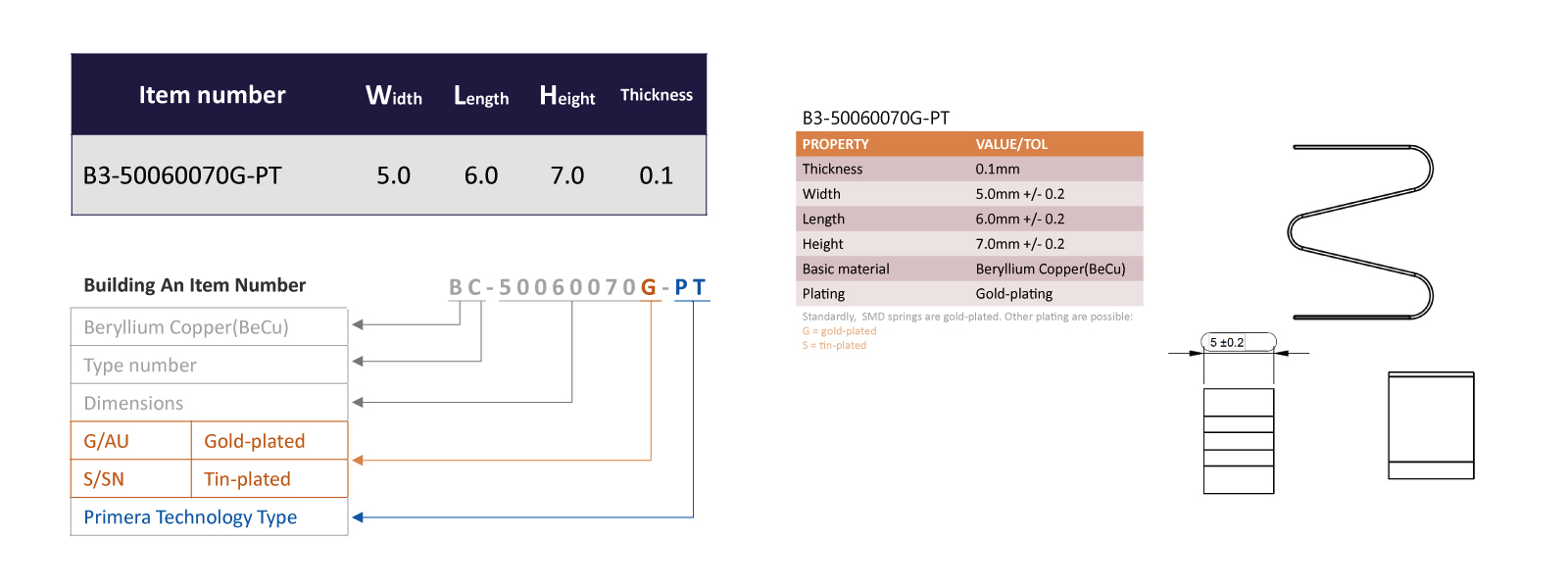

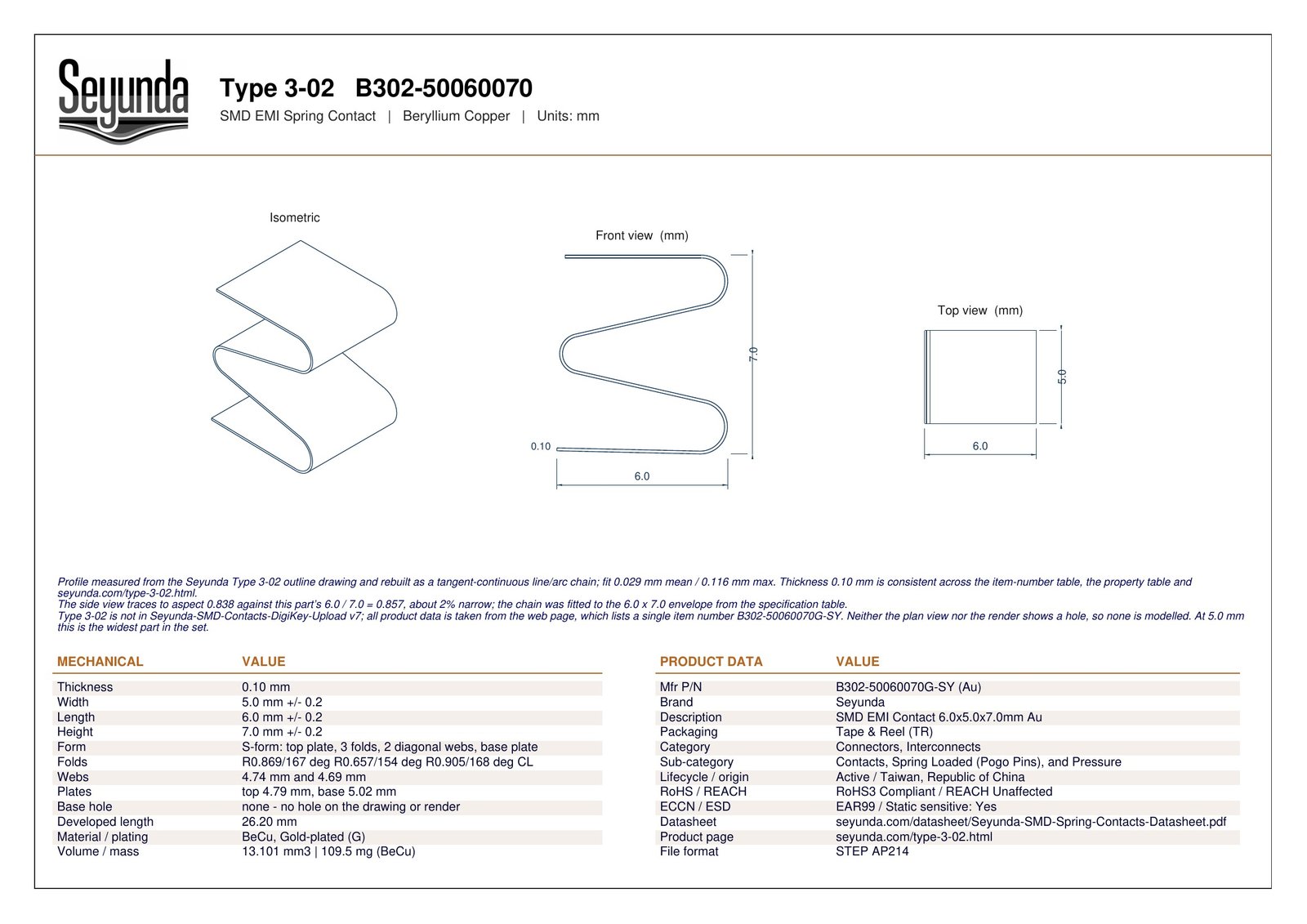

| Item number | B302-50060070G-SY |
|---|---|
| Thickness | 0.1 mm |
| Width | 5.0 mm ± 0.2 |
| Length | 6.0 mm ± 0.2 |
| Height | 7.0 mm ± 0.2 |
| Basic Material | Beryllium Copper (BeCu) |
| Plating | Gold-plating |
|
Standardly, SMD springs are gold-plated. Other plating are possible: G = Gold-plated S = Tin-plated |
|
Contact us for product samples, datasheets, dimensions and pricing for Type 3 - 02.
