SMD / EMI
Spring Contacts

Surface mount spring contacts for PCB grounding, EMI shielding, board-to-board and board-to-housing electrical connections. Tape-and-reel packaged for automated SMT assembly lines — 3 type families, 31 variants.

Compare SMD / EMI Spring Contacts →

SMD / EMI Spring Contacts — 3 Type Families

Product Types

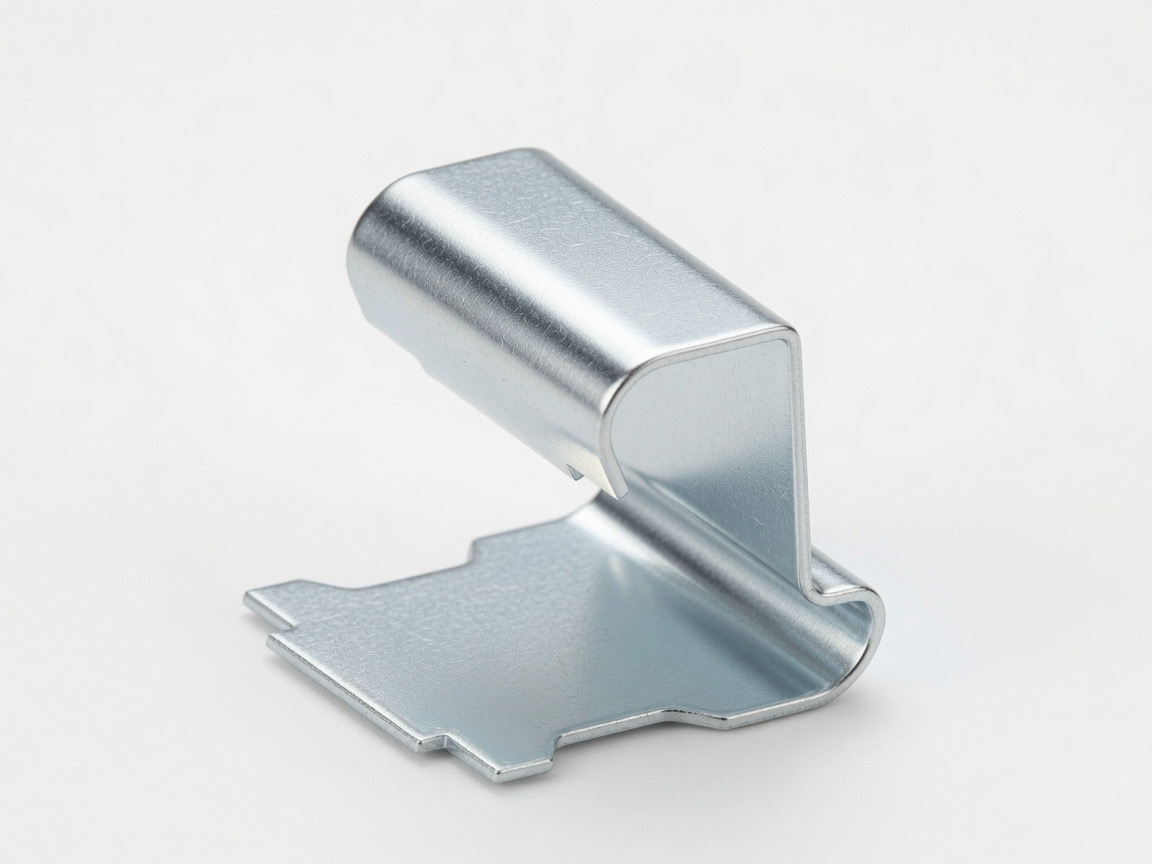

Type C

12 Variants

C-type SMD spring contacts for PCB surface mount assembly. Tape-and-reel packaged for automated SMT lines. 12 variants covering a wide range of contact heights, pitches and force specifications.

TYPE C-01 · C-02 · C-03 · C-04 · C-05 · C-06 · C-07 · C-08 · C-09 · C-10 · C-11 · C-12

→

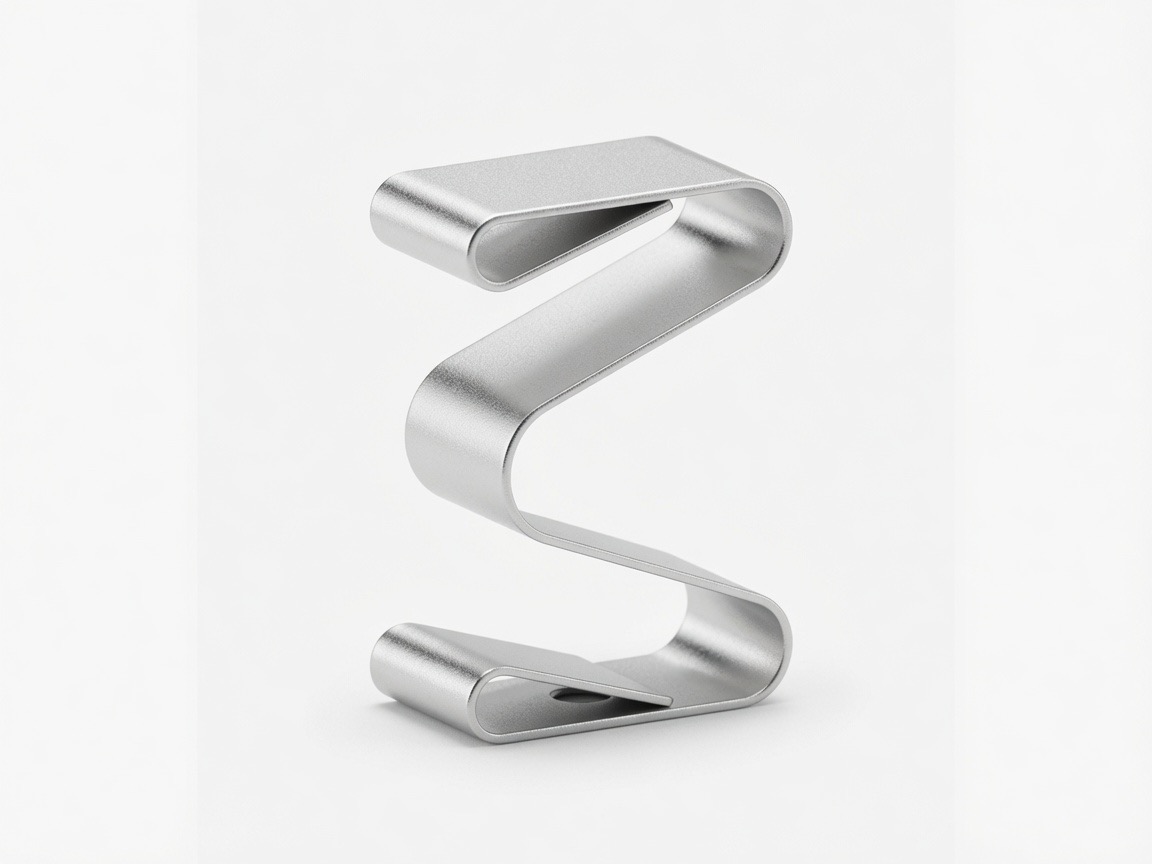

Type 3 & S

8 Variants

Type 3 and Type S SMD spring contacts for diverse board-to-board and board-to-housing electrical contact applications. 8 variants across two sub-families for grounding and signal conduction.

TYPE 3-01 · 3-02 · 3-03 · 3-04 · 3-05 · TYPE S-01 · S-02 · S-03

→

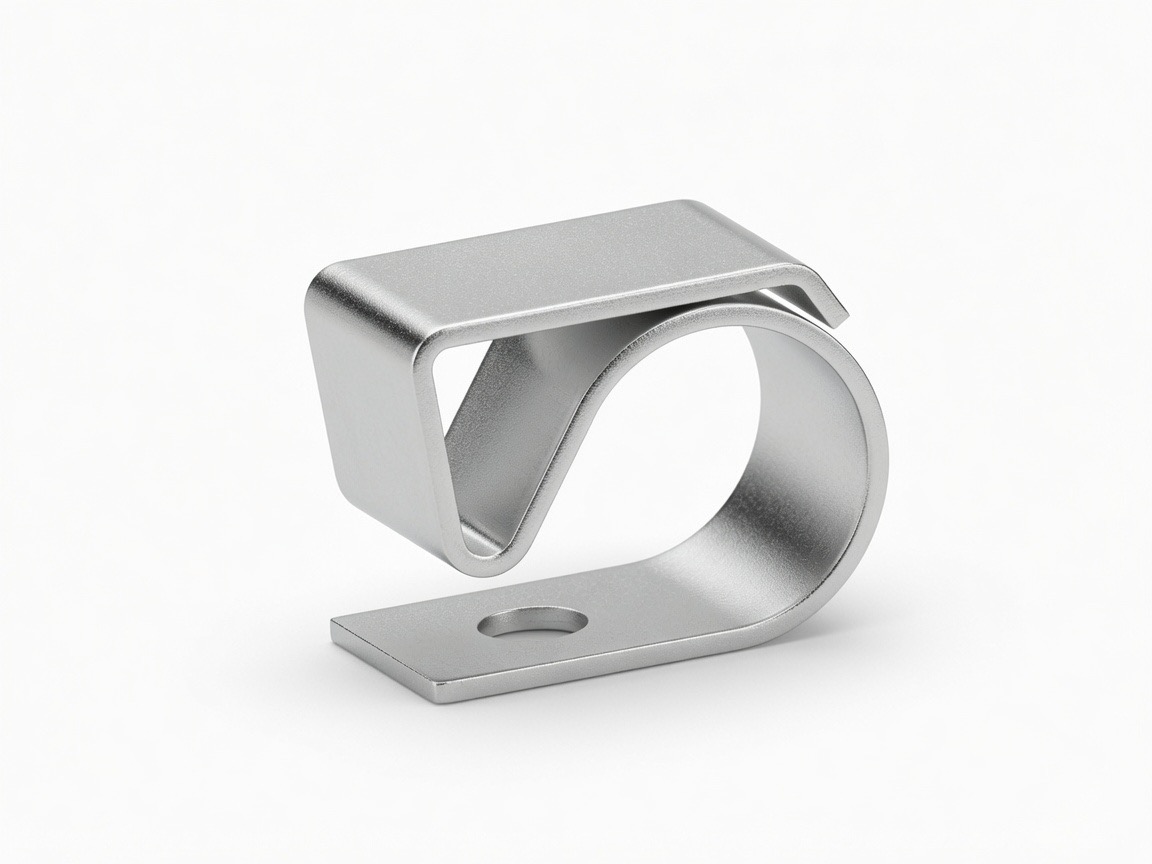

Other Types

11 Variants

Extended range of SMD spring contact types including Type D, Type 8, Type 5, Type U and Type 6. 11 variants covering specialist geometries for EMI shielding, grounding and precision electrical contact.

TYPE D · TYPE 8 (×4) · TYPE 5 (×4) · TYPE U · TYPE 6

→

◆

SMT Compatible

All spring contacts are tape-and-reel packaged for automated surface mount assembly — compatible with standard SMT pick-and-place equipment.

◆

EMI Shielding

Spring contacts provide reliable EMI shielding between PCB and metal housings — maintaining consistent contact force across the product life.

◆

Electrical Grounding

Low-resistance grounding paths between PCB layers, boards and chassis — consistent contact force ensures reliable electrical continuity.

◆

31 Variants

Three type families — Type C (12), Type 3&S (8) and Other Types (11) — covering a wide range of heights, pitches and force specifications.

◆ Get in Touch

Request a Sample

Contact us for product samples, datasheets, and pricing. Our team will help you select the right spring contact for your application.
