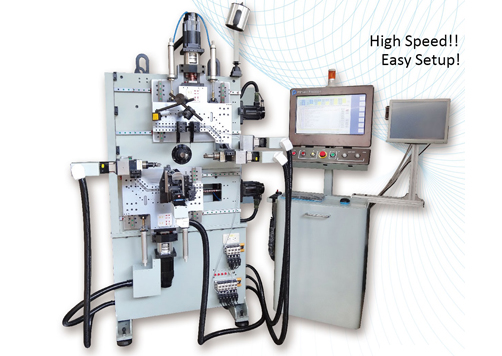

ZX-250 is a CNC spring and wire former capable of producing compression springs, torsion springs, and complex wire forms. Wire range 0.5–5.0 mm with multi-axis servo control for precision forming across a wide variety of spring types.
Standard 9 axes: X table ×2, Y table ×2, feed, rotary quill, rotary wire, single spinner ×2.
Japan Yaskawa motors and drivers.
Touch screen (B&R software).
Auto OD or angle adjustment (B&R software).
Online software troubleshooting (B&R software).
Protection cover.
Full set of tools.
Optional Accessories
Camera gauge.
Double spinner.
Single spinner.
Tension spring OD gripper.
Hook station.
Swiss laser probe.
| ZX-250 | |
|---|---|
| Capability | |
| Material Range | Wire Ø 0.5–2.5 mm / Strip T0.15×12 mm |
| Max. Spring O.D. | 100 mm |
| Max. Bending Return Length | 85 mm |
| Power Supply & Dimensions | |
| Power | 220V (*380V) 3P 50/60Hz 5.0 KVA |
| Dimensions (L×W×H) | 2,190 × 1,760 × 2,040 mm |
| Weight | 1,700 kg |
| Axes | |
| Axes | 9 axes (*Max. 16 axes) — Japan Yaskawa Motor |
| X Table ×2 | |
| Max. Travel | 300 mm |
| Min. Increment | 0.01 mm |
| Max. Rated Speed | 2,500 RPM |
| Motor Output | 2.0 KW |
| Y Table ×2 | |
| Max. Travel | 110 mm |
| Min. Increment | 0.01 mm |
| Max. Rated Speed | 2,500 RPM |
| Motor Output | 2.0 KW |
| Feed ×1 | |
| Min. Increment | 0.01 mm |
| Max. Increment | 99,999.99 mm |
| Max. Feed Speed | 140 m / min |
| Max. Rated Speed | 750 RPM |
| Motor Output | 3.0 KW |
| Rotary Wire ×1 | |
| Min. Increment | 0.1° |
| Max. Rotating Angle | Wire: 360° / Strip: +90° |
| Max. Rated Speed | 120 RPM |
| Motor Output | 4.5 KW |
| Rotary Quill ×1 | |
| Min. Increment | 0.1° |
| Max. Increment | 9,999° |
| Max. Rated Speed | 250 RPM |
| Motor Output | 400 W |
| Spinner ×2 | |
| Min. Increment | 0.1° |
| Max. Increment | 9,999° |
| Max. Rated Speed | 300 RPM |
| Motor Output | 400 W |
Contact Seyunda for pricing, lead times, and technical consultation on the right wire and strip forming model for your requirements.
