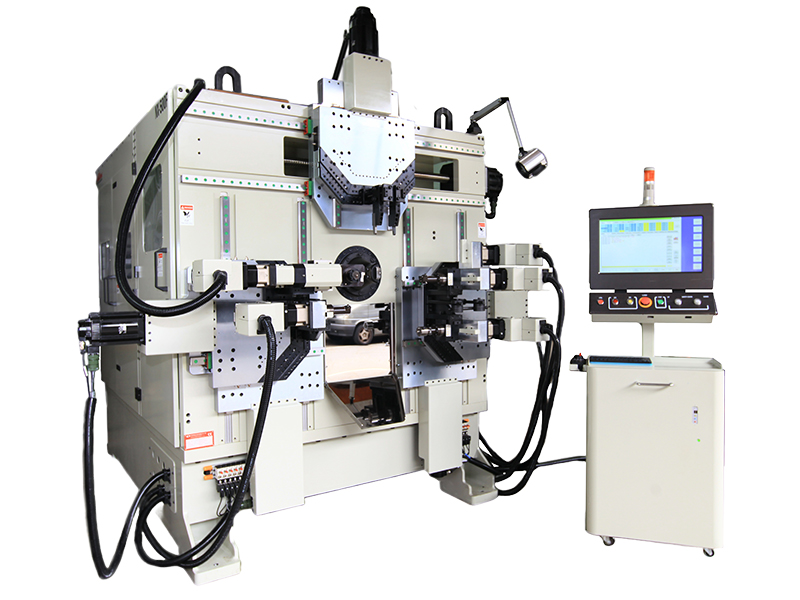

NX-500F is a heavy-duty CNC spring and wire former designed for large-wire applications. Multi-axis servo control for consistent production of compression springs, torsion springs, and complex wire forms across a broad diameter range.
Japan Yaskawa motors and drivers.
Touch screen (B&R software).
Auto OD or angle adjustment (B&R software).
Online software troubleshooting (B&R software).
Optional servo cutter, double spinner, 3D station, hook station, servo press, etc.
| NX-500F | |
|---|---|
| Material | Wire: Ø 2.0–5.0 mm / Strip: 2 (thickness) × 18 mm |
| Max. Spring O.D. | 200 mm |
| Axes | 11 axes (*B&R — Max. 25 axes) |
| Max. Feed Speed | 106 m / min |
| Dimensions (W×D×H) | 294 × 267 × 267 cm |
| Weight | 9,000 KGS |
| Power | 220V, 3P 50/60Hz |
Contact Seyunda for pricing, lead times, and technical consultation on the right wire and strip forming model for your requirements.
