Spring Design for Consumer Electronics: Balancing Miniaturization and Reliability

Consumer electronics push springs and contacts in two directions at once: smaller, and expected to work for the life of a device that is handled daily. Those requirements are in tension, and the design decisions that resolve them are worth making deliberately.

WHAT MINIATURIZATION ACTUALLY COSTS

A smaller spring in the same application means either less force or higher stress. There is no third option — force comes from deflecting material, and less material means less force for the same deflection.

Pushing stress higher to keep the force buys you the space and spends fatigue life. That is an acceptable trade when the cycle count is genuinely low, and a poor one when it is not. The first question on a miniature spring is therefore not how small it can be, but how many cycles it must survive.

THE CYCLE COUNT QUESTION

Consumer devices vary enormously here, and the variation drives the design.

• A battery contact may be deflected a few dozen times in the product's life.
• A button return may cycle hundreds of thousands of times.
• A hinge detent may cycle tens of thousands with a much larger deflection.

Those three are different engineering problems, and treating them all as "a small spring" produces either an over-engineered part or an early failure. State the expected cycles in the specification.

CONTACT AND GROUNDING

Where the part carries current or provides a ground path, the requirement changes from force to maintained force. Contact resistance depends on contact pressure, so a part that relaxes develops resistance, and resistance in a current path generates heat that accelerates the relaxation further.

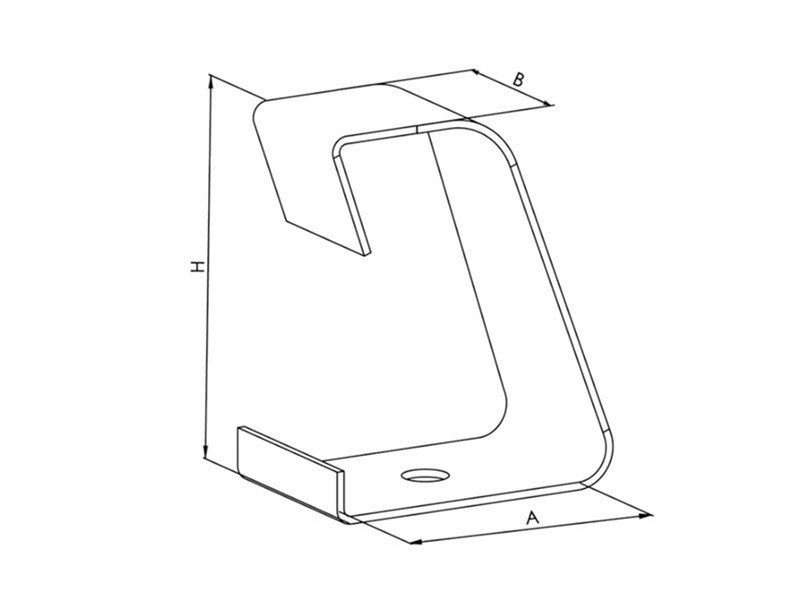

Beryllium copper is the standard answer here because it holds its elastic properties well, including at elevated temperature. Our SMD and EMI contacts use it across all 31 variants, in heights from 1.5 mm to 13.0 mm with tin or gold plating.

Plating choice follows the environment. Gold does not oxidize, so the interface stays stable over years. Tin costs less and solders readily, but under repeated micro-motion it is subject to fretting corrosion — which in a handheld device is a realistic condition rather than a theoretical one.

THE TOLERANCE STACK NOBODY CALCULATES

In a compact assembly, the gap a contact must bridge is not one dimension. It accumulates from board thickness, component height, enclosure tolerance, and assembly variation.

Designing on the nominal gap and assuming it holds is the most common specification error at this scale. Work the stack at both extremes: the maximum gap decides whether contact is maintained at all, and the minimum decides whether the part is compressed beyond its elastic range.

WHAT TO SETTLE BEFORE THE FIRST BUILD

1. Expected cycles over the product life, honestly estimated. This decides more of the design than the force does.
2. The gap at both tolerance extremes, worked through the full stack rather than at nominal.
3. Whether the path carries current, and if so how much. A signal path and a ground path justify different plating budgets.
4. Operating temperature, since stress relaxation is temperature driven and a device that runs warm ages its contacts faster.
5. Reflow profile, confirmed against the contact specification rather than assumed.

Settling these five before the first build removes most of the intermittent faults that otherwise surface late, when they are expensive and difficult to reproduce.

ASSEMBLY REALITIES

Parts at this size are placed automatically, which makes packaging part of the specification rather than a shipping detail. Tape-and-reel for pick-and-place, and a part geometry that presents a flat surface for a nozzle to pick.

Reflow is the other constraint. A contact going through SMT reflow must tolerate the profile, and the profile is usually already optimized for the components around it. Confirm the contact specification against your actual profile before the first build rather than after it.

A broader point about consumer timescales. These products are designed quickly and revised often, which makes tooling flexibility worth more than it is in automotive. Where a contact or spring may change between product revisions, choosing a part from an existing range rather than a bespoke geometry saves a tooling cycle at every revision — and with 57 published part numbers across 31 variants, the existing range covers more requirements than people expect.

---
